Gear Operated Forged Steel Trunnion Mounted Flanged Ball Valve Class 1500 2500
General:
Structure: Trunnion Ball Type
Pressure: 150lb-2500lb
OEM: Yes, OEM is available
Place of Origin: Zhejiang, China
Power: Manual, Pneumatic, Electric
FEATURES:
|
Size: 2"~40"
|
Design
|
ASME B16.34/API 6D
|
|
Class: 150~2500Lb
|
Face to Face
|
ASME B16.10/API 6D
|
|
Three Pieces Forged Steel Body
|
End to End
|
ASME B16.10/API 6D
|
|
Trunnion Mounted Ball, Full & Reduced Bore
|
End Flange
|
ASME B16.5
|
|
Anti-Static Device
|
BW End
|
ASME B16.25
|
|
Blow-out Proof Stem
|
Test
|
API 6D
|
|
Double Block and Bleed
|
Fire Safe Test
|
API 607/API 6FA
|
|
Fire Safe Design
|
Special
|
NACE MR-01-75
|
|
Emergency Sealant Injector ( 6" & Larger)
|
|
|
|
Vent Valve, Drain Valve ( 6" & Larger)
|
|
|

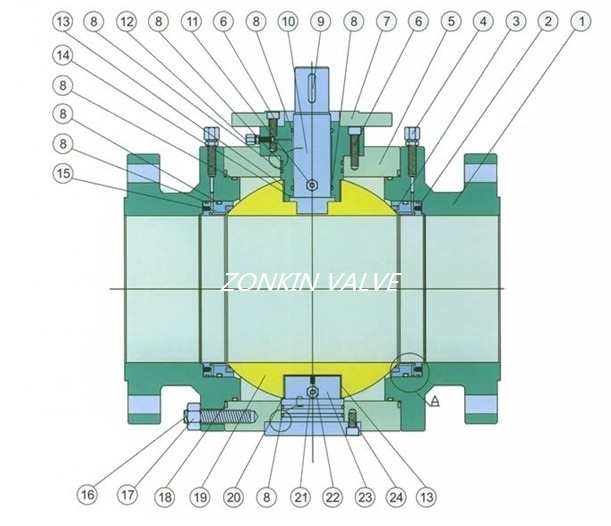

MATERIALS:
|
No.
|
Part
|
Material
|
|
1
|
Bonnet
|
ASTM A105 A182-F304, F316, F316L, F304L
|
|
2
|
Seat Spring
|
Inconel X-7505 S.S.304 S.S.316
|
|
3
|
Seat
|
NYLON PTFE RTPFE PEEK
|
|
4
|
Seat Injection
|
1020+Zn A182-F304, F316, F316L
|
|
5
|
Body
|
ASTM A105 A182-F304, F316, F316L, F304L
|
|
6
|
Screw
|
ASTM A193-B7, B8
|
|
7
|
Top Flange
|
ASTM A105 A182-F304
|
|
8
|
O-ring
|
NBR Viton
|
|
9
|
Key
|
1045 A182-F304, F316, F316L, F304L
|
|
10
|
Stem
|
ASTM A105+ENP A182-F6, F304, F304L, F316, F316L
|
|
11
|
Vent Valve
|
1020+Zn A182-F304, F316, F316L
|
|
12
|
Stem Injection
|
1020+Zn A182-F304, F316, F316L
|
|
13
|
Sliding Bearing
|
Stainless Steel+PTFE S.S.316+PTFE
|
|
14
|
Thrust Washer
|
PTFE
|
|
15
|
Seat Ring
|
ASTM A105+ENP A182-F6, F304, F304L, F316, F316L
|
|
16
|
Stud
|
ASTM A193-B7, B7M, B8, B8M
|
|
17
|
Nut
|
ASTM A194-2H, 2HM, 8, 8M
|
|
18
|
Gasket
|
PTFE S.S.304+Graphite S.S.316+Graphite
|
|
19
|
Ball
|
ASTM A105+ENP ASTM A182-F304, F316, F316L, F6
|
|
20
|
Lower Gasket
|
PTFE
|
|
21
|
Drain Valve
|
1020+Zn A182-F304, F316, F316L
|
|
22
|
Antistatic Spring
|
Stainless Steel S.S.316
|
|
23
|
Trunnion
|
ASTM A105+ENP A182-F6, F304, F304L, F316, F316L
|
|
24
|
Screw
|
ASTM A193-B7, B8
|
|

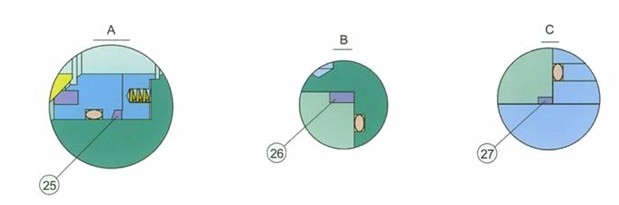

25
|
Seat Sealing
|
Graphite
|
|
26
|
Gland Gasket
|
S.S.304+Graphite
|
|
27
|
Bottom Cover Gasket
|
S.S.304+Graphite
|

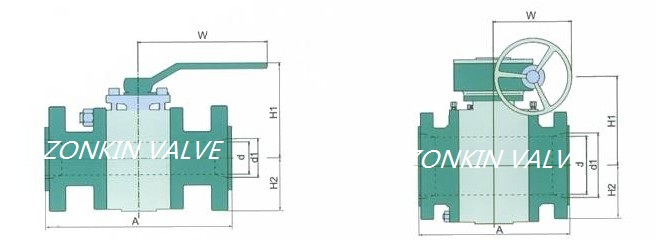

DIMENSIONS
CLASS 2500
|
Size
|
d
|
A
|
H1
|
H2
|
W
|
|
in
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
2
|
44
|
451
|
230
|
121
|
815
|
|
3
|
64
|
578
|
284
|
146
|
*500
|
|
4
|
89
|
673
|
303
|
164
|
*500
|
|
6
|
133
|
914
|
394
|
220
|
*600
|
|
8
|
181
|
1022
|
488
|
312
|
*760
|
|
10
|
225
|
1270
|
600
|
425
|
*760
|
|
12
|
267
|
1422
|
872
|
629
|
*760
|
|
