Cast Steel Globe Valve-China Zonkin Valve - China Professional Valve Manufacturers and Suppliers

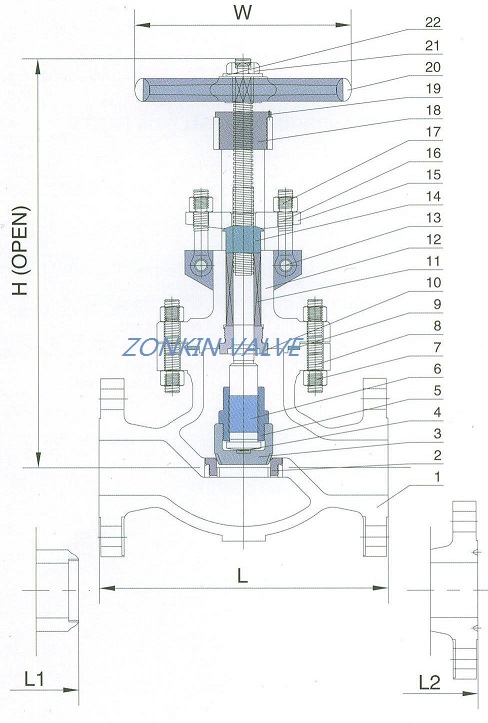

MATERIALS

ITEM	PART NAME	MATERIAL
1	Body	ASTM A216 GR.WCB
2	Seat Ring	ASTM A105 + Stellite Faced
3	Disc	ASTM A105 + 13Cr Faced
4	Disc Thrust Plate	ASTM A276 Type 420
5	Disc Nut	ASTM A276 Type 410
6	Stem	ASTM A182 GR.F6
7	Bonnet Bolt Nuts	ASTM A194 GR.2H
8	Bonnet Bolts	ASTM A193 GR.B7
9	Gasket	Soft Iron + Graphite
10	Backseat Bushing	ASTM A276 Type 410
11	Stem Packing	Braided Graphite & Die formed Graphite Ring
12	Bonnet	ASTM A216 GR.WCB
13	Eye Bolt Pins	Carbon Steel
14	Gland	ASTM A276 Type 410
15	Gland Flange	ASTM A216 GR.WCB
16	Gland Eye Bolts	ASTM A307 GR.B
17	Eye Bolt Nuts	ASTM A194 GR.2H
18	Yoke Bush	ASTM A439 GR.D-2
19	Screw	Carbon Steel
20	Hand wheel	Ductile Iron
21	Hand wheel Nut	ASTM A194 GR.2H
22	Washer	Carbon Steel
23	Yoke	ASTM A216 GR.WCB
24	Yoke Pan Bolt Nuts	ASTM A194 GR.2H
25	Yoke Pan Bolts	ASTM A193 GR.B7
26	Bearing	Steel

DIMENSIONS (PLEASE CONTACT US FREELY)
