Cast Steel Gate Valve |
|
|
Product name：Cast Steel Gate Valve |
Item：083 |
Details： |

FEATURES SPECIFICATIONS
Design&Manufacturing Standard: API, ANSI, JIS, DIN, ROST.
OS&Y, Rising Stem, Bolted Bonnet Structure.
Locking Device Optional, and NACE MR-01-75 Special Optional
MATERIALS
|
ITEM
|
PART NAME
|
MATERIAL
|
|
1
|
Body
|
ASTM A216 GR.WCB,
|
|
2
|
Seat Ring
|
ASTM A105 + Stellite Faced
|
|
3
|
Disc
|
ASTM A216 GR.WCB+13Cr Faced
|
|
4
|
Stem
|
ASTM A182 GR.F6
|
|
5
|
Gasket
|
Soft Iron + Graphite
|
|
6
|
Bonnet
|
ASTM A216 GR.WCB
|
|
7
|
Bonnet Nuts
|
ASTM A194 GR.2H
|
|
8
|
Bonnet Bolts
|
ASTM A193 GR.B7
|
|
9
|
Backseat Bushing
|
ASTM A276 Type 410
|
|
10
|
Stem Packing
|
Graphite packing
|
|
11
|
Eye Bolt Pins
|
Carbon Steel
|
|
12
|
Gland Eye Bolts
|
ASTM A307 GR.B
|
|
13
|
Gland
|
ASTM A276 Type 410
|
|
14
|
Gland Flange
|
ASTM A216 GR.WCB
|
|
15
|
Eye Bolt Nuts
|
ASTM A194 GR.2H
|
|
16
|
Grease Nipple
|
Carbon Steel
|
|
17
|
Stem Nut
|
ASTM A439 GR.D-2
|
|
18
|
Retaining Nut
|
Carbon Steel
|
|
19
|
Hand wheel
|
Ductile Iron
|
|
20
|
Hand wheel Nut
|
Carbon Steel
|
|
21
|
Screw
|
Carbon Steel
|
|

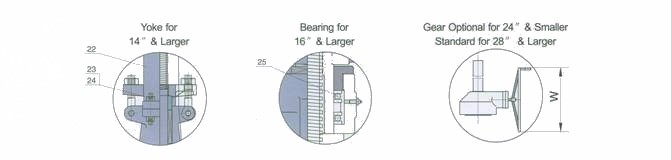

22
|
Yoke
|
ASTM A216 GR.WCB
|
|
23
|
Nuts
|
ASTM A194 GR.2H
|
|
24
|
Bolts
|
ASTM A193 GR.B7
|
|
25
|
Bearing
|
Steel
|
|
 |
